High-Speed Dual Row Strips
Reliable SI Performance • Optimized for Speed • Space Saving Designs
Samtec offers the largest variety of high-speed board-to-board interconnects in the industry with full engineering support, online tools and an unmatched service attitude.
High-speed mezzanine solutions include Q Strip® ground plane connectors for reliable performance in space-saving designs, as well as Edge Rate® connector strips optimized for signal integrity performance to 56 Gbps PAM4 in a wide variety of stack heights.
High-Speed Dual Row Strips Brochure
Download PDF
Q Strip®Q Strip® High Speed Ground Plane Connectors, Mezzanine
Featuring an integral ground plane, Samtec Q Strip® high speed ground plane connectors are designed for high-speed board-to-board applications where signal integrity is essential.
Features
- Performance: Up to 14.0 GHz /28 Gbps

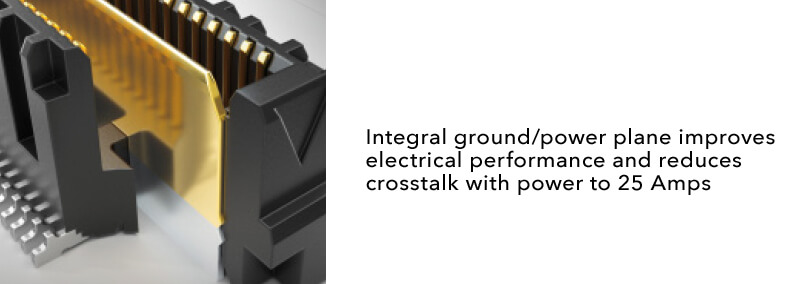

- Integral ground/power plane
- Connector to connector retention options
- Vertical, perpendicular, and coplanar applications
- Contacts: Up to 180 I/Os
- Stack height: 5 mm - 25 mm
Products
- QSE
- QSH
- QSS
- QTE
- QTH
- QTS
- QSS-RA
- QTS-RA
- QSE-EM
- QTH-RA
- QSH-RA
QSE
0.80 mm Q Strip® High-Speed Ground Plane Socket Strip
QSH
0.50 mm Q Strip® High-Speed Ground Plane Socket Strip
QSS
0.635 mm Q Strip® High-Speed Ground Plane Socket Strip
QTE
Q Strip® High-Speed Ground Plane Header, 0.80mm Pitch
QTH
0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip
QTS
0.635 mm Q Strip® High-Speed Ground Plane Terminal Strip
QSS-RA
0.635 mm Q Strip® High-Speed Ground Plane Socket Strip, Right-Angle
QTS-RA
0.635 mm Q Strip® High-Speed Ground Plane Terminal Strip, Right-Angle
QSE-EM
0.80 mm Q Strip® High-Speed Ground Plane Socket Strip, Edge Mount
QTH-RA
0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip, Right-Angle
QSH-RA
0.50 mm Q Strip® High-Speed Ground Plane Socket Strip, Right-Angle
Q Rate®Q Rate® Slim, Rugged High-Speed Mezzanine Connectors
Samtec Q Rate® rugged high speed connectors have a slim footprint, integral power/ground plane, and Edge Rate® contacts for superior SI performance.
Features
- Performance to 28 Gbps
- Rugged Edge Rate® contacts
- Integral ground/power plane
- Up to 156 positions

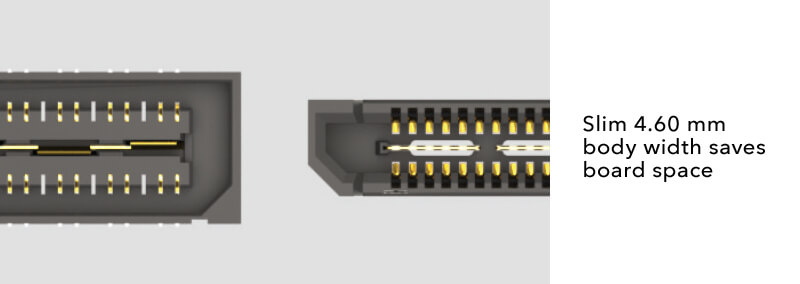

- Slim footprint (less than 5.00 mm wide)
Products
- QRF8
- QRM8
- QRF8-DP
- QRF8-RA
- QRM8-DP
- QRM8-RA

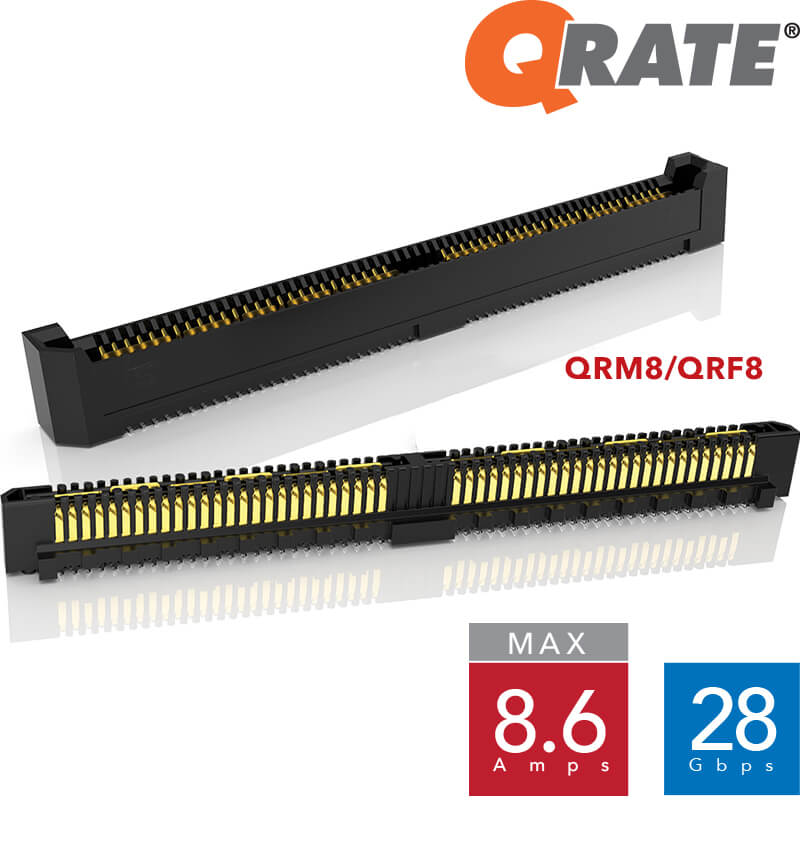

QRF8
0.80 mm Q Rate® Slim Body Ground Plane Socket
QRM8
0.80 mm Q Rate® Slim Body Ground Plane Header
QRF8-DP
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Socket Strip, Differential Pair
QRF8-RA
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Socket Strip, Right-Angle
QRM8-DP
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Terminal Strip, Differential Pair
QRM8-RA
0.80 mm Q Rate® High-Speed Ground Plane Slim Body Terminal Strip, Right-Angle
Q2™Q2™ Rugged, Shielded, High-Speed Mezzanine Connectors
These rugged, shielded, high-speed mezzanine connectors feature a ground plane and high-wipe contacts.
Features
- Performance to 25 Gbps NRZ
- Increased insertion depth
- Dual stage hot pluggable
- Integral ground/power plane

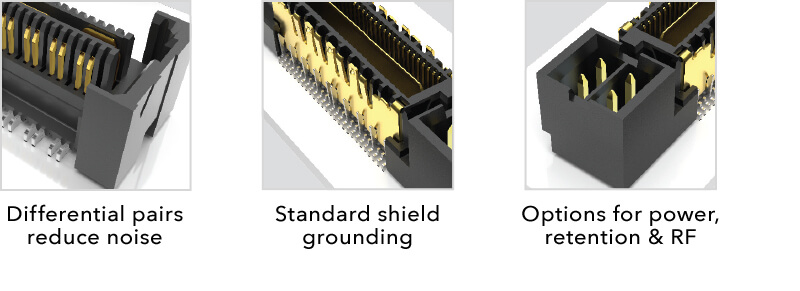

- Shielded option available
- Power combo option
- Contacts: Up to 208 I/Os
- Stack height: 10.00 mm - 16.00 mm
Products
- QFS
- QMS
- QFS-DP
- QMS-DP
- QFS-RA
- QMS-RA
- QFS-EM
- QMS-EM
- QFS-PC
- QMS-PC
- QFSS
- QMSS
- QFSS-DP
- QMSS-DP
- QFSS-PC
- QMSS-PC
- QFSS-DP-PC
- QMSS-DP-PC

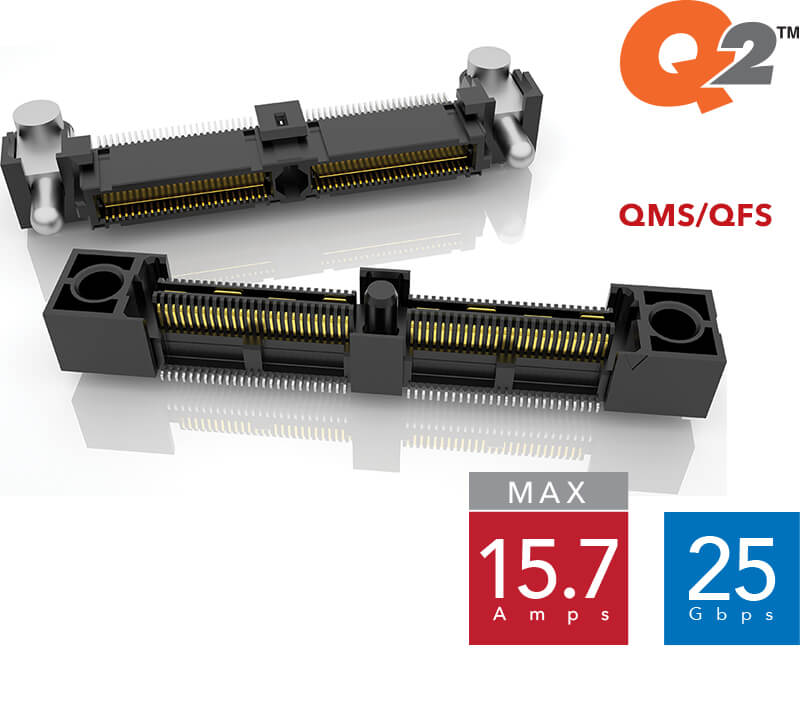

QFS
0.635 mm Q2™ High-Speed Rugged Ground Plane Socket Strip
QMS
0.635 mm Q2™ High-Speed Rugged Ground Plane Terminal Strip
QFS-DP
0.635 mm Q2™ High-Speed Rugged Ground Plane Socket Strip, Differential Pair
QMS-DP
0.635 mm Q2™ High-Speed Rugged Ground Plane Terminal Strip, Differential Pair
QFS-RA
0.635 mm Q2™ High-Speed Rugged Ground Plane Socket Strip, Right-Angle
QMS-RA
0.635 mm Q2™ High-Speed Rugged Ground Plane Terminal Strip, Right-Angle
QFS-EM
0.635 mm Q2™ High-Speed Rugged Ground Plane Socket Strip, Edge Mount
QMS-EM
0.635 mm Q2™ High-Speed Rugged Ground Plane Terminal Strip, Edge Mount
QFS-PC
0.635 mm Q2™ High-Speed Rugged Ground Plane Combo Power Socket Strip
QMS-PC
0.635 mm Q2™ High-Speed Rugged Ground Plane Combo Power Terminal Strip
QFSS
0.635 mm Q2™ Shielded Ground Plane Socket Strip
QMSS
0.635 mm Q2™ Shielded Ground Plane Terminal Strip
QFSS-DP
0.635 mm Q2™ Shielded Ground Plane Socket Strip, Differential Pair
QMSS-DP
0.635 mm Q2™ Shielded Ground Plane Terminal Strip, Differential Pair
QFSS-PC
0.635 mm Q2™ Shielded Ground Plane Combo Power Socket Strip
QMSS-PC
0.635 mm Q2™ Shielded Ground Plane Combo Power Terminal Strip
QFSS-DP-PC
0.635 mm Q2™ Shielded Ground Plane Combo Power Socket Strip, Differential Pair
QMSS-DP-PC
0.635 mm Q2™ Shielded Ground Plane Combo Power Terminal Strip, Differential Pair

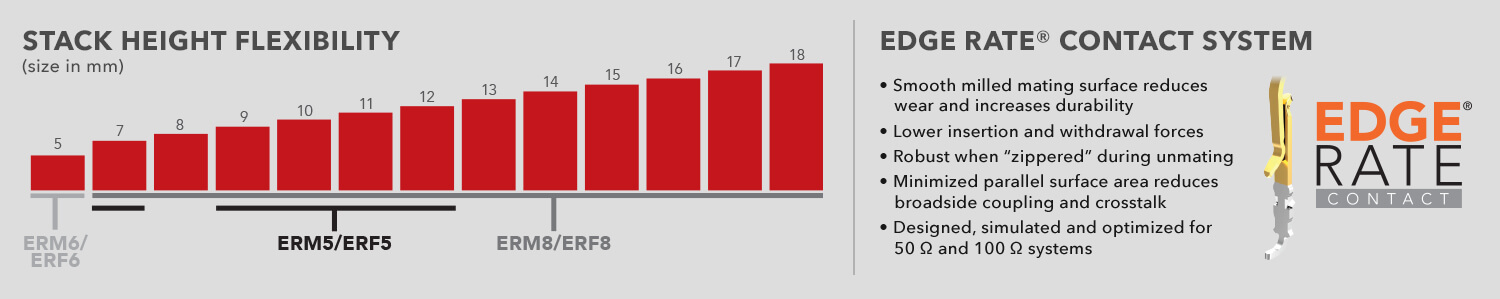

Edge Rate®Edge Rate® High-Speed Rugged High-Cycle Connectors
Edge Rate® rugged high cycle connectors feature contact systems optimized for signal integrity performance.
Features
- Edge Rate® contacts optimized for signal integrity performance
- 1.5 mm contact wipe
- Robust when "zippered" during unmating
- Up to 56 Gbps PAM4 performance
- 0.50 mm, 0.635 mm or 0.80 mm pitch systems
- Stack heights from 5 mm to 18 mm
- Extremely slim 2.5 mm body width on 0.635 mm pitch system
- 0.50 mm pitch system for up to 40% PCB space savings vs 0.80 mm pitch system
Products
- ERM8
- ERF8
- ERM8-RA
- ERF8-RA
- ERM8-EM
- ERF8-EM
- ERM8-S
- ERF8-S
- ERM5
- ERF5
- ERF5-RA
- ERF6
- ERM6

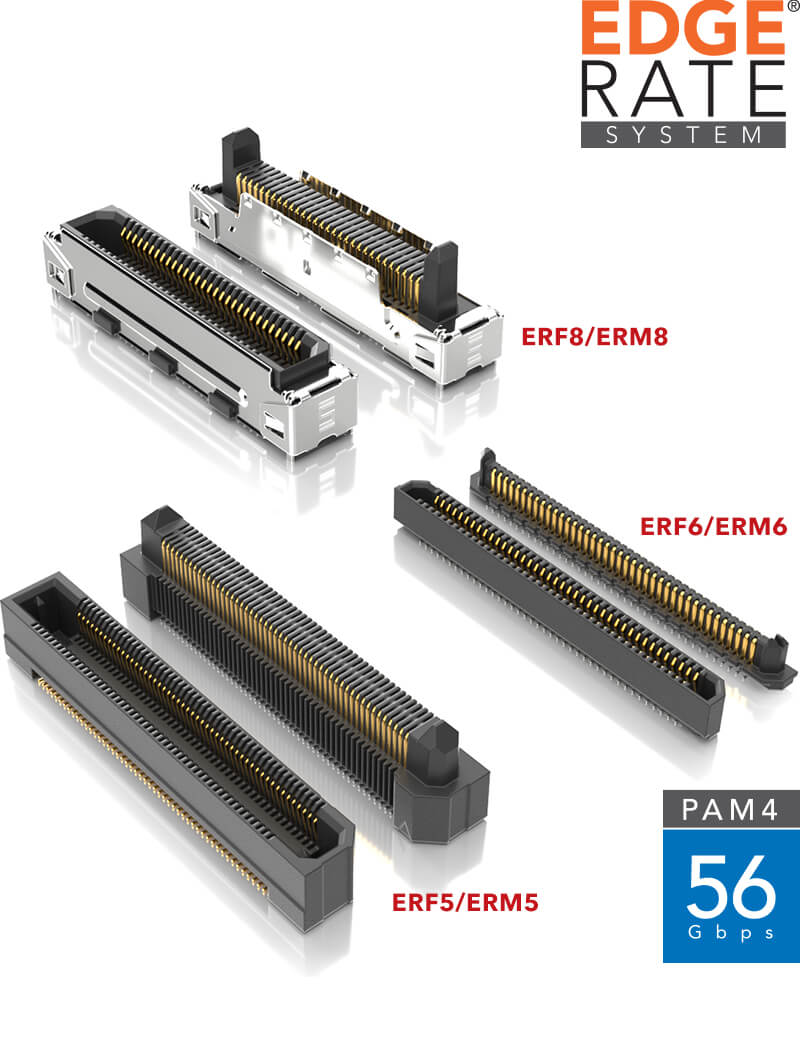

ERM8
0.80 mm Edge Rate® Rugged High Speed Terminal
ERF8
0.80 mm Edge Rate® Rugged High Speed Socket
ERM8-RA
0.80 mm Edge Rate® Rugged High Speed Terminal, Right-Angle
ERF8-RA
0.80 mm Edge Rate® Rugged High Speed Socket, Right-Angle
ERM8-EM
0.80 mm Edge Rate® Rugged High Speed Terminal, Edge Mount
ERF8-EM
0.80 mm Edge Rate® Rugged High Speed Socket, Edge Mount
ERM8-S
0.80 mm Edge Rate® Rugged High Speed Terminal, Shielded
ERF8-S
0.80 mm Edge Rate® Rugged High Speed Socket, Shielded
ERM5
0.50 mm Edge Rate® Rugged High Speed Terminal
ERF5
0.50 mm Edge Rate® Rugged High Speed Socket
ERF5-RA
0.50 mm Edge Rate® Rugged High Speed Terminal, Right-Angle
ERF6
0.635 mm Edge Rate® Rugged High Speed Socket
ERM6
0.635 mm Edge Rate® Rugged High Speed Terminal
