Bulls Eye® High-Performance Test
Optimized Performance to 70 GHZ • High-Density • Space-Saving Design

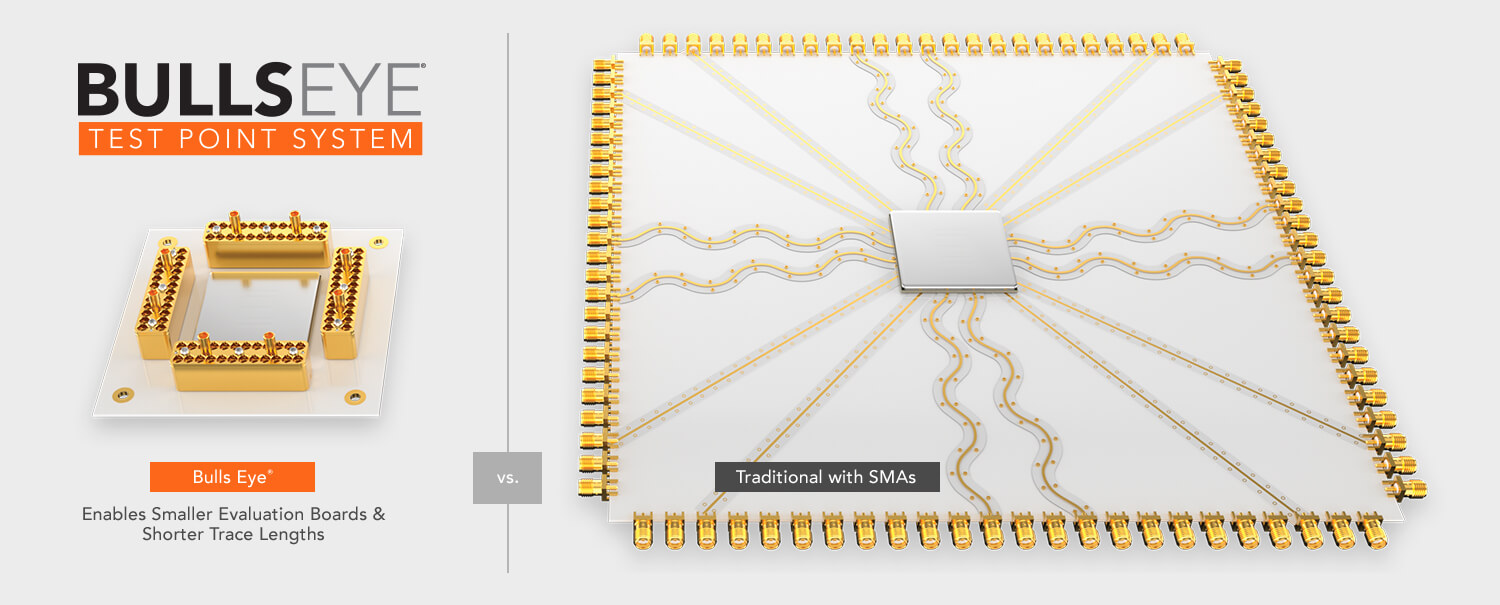

The high-density array designs and advanced cabling solutions within Samtec’s Bulls Eye® product family support test and measurement applications to 70 GHz. Soldering costs are eliminated with a compression interface to the board for easy on/off and high cycle counts. The high-density and space-saving design enables smaller evaluation boards and shorter trace lengths versus traditional SMAs.
The Bulls Eye® double row 70 GHz test system is 224 Gbps PAM8, 224 Gbps PAM6, 224 Gbps PAM4 and 112 Gbps NRZ compliant, and features a 360º grounding (stripline), spring-loaded contact. The 50 GHz system is designed with a signal and ground pogo-pin contact, plus 2.40 mm end connectors. Additional double and quad row systems are available with 2.92 mm end connectors.
BE70A
70 GHz, Bulls Eye® High-Performance Test Assembly
Features
112 Gbps PAM4 SerDes Characterization
360° grounding (stripline), spring-loaded contact
.086 cable
1.85 mm connection to instrumentation
Performance to 70 GHz
Single or double row
Microstrip/CPW or stripline PCB transmission
50 ohm impedance
Replacement cables (BE70C Series) and block (BE70B Series) available
The signal path of channel two in this demonstration uses BE70A: results show 112 Gbps PAM4 data running virtually error-free, e-11 or better, Pre-FEC
224 Gbps PAM4 SerDes Characterization possible with certain SI-optimization considerations (watch the video)
BE40A
50 GHz, Bulls Eye® High-Performance Test Assembly
Features
56 Gbps PAM4 SerDes Characterization
Enhanced system design with signal and ground pogo pin
2.40 mm (50 GHz) or 2.92 mm (40 GHz) connection to instrumentation
Performance to 50 GHz
Double row
Microstrip/CPW or stripline PCB transmission
50 ohm impedance
23 AWG solid dielectric low loss microwave cable with additional copper shielding
Replacement cables (BE40C Series) and block (BE40B Series) available
BDRA
20 GHz, Bulls Eye®: Double Row, High-Performance Test System
Features
23 AWG solid dielectric low loss microwave cable
50 ohm impedance
Fixed-pin design
Replacement cables (BE23S Series), block (BDR Series) and elastomer available
BQRA
20 GHz, Bulls Eye®: Quad Row, High-Performance Test System
Features
23 AWG solid dielectric low loss microwave cable
50 ohm impedance
Fixed-pin design
Replacement cables (BE23S Series), block (BQR Series) and elastomer available
