High Speed Cable
Assemblies
High Speed Cable Assemblies
High-Density • Design Flexibility • High Reliability
Samtec’s high-speed cable assemblies feature Eye Speed® cable technology for excellent signal integrity performance with individual copper serve or braid shielding. The conductor is stranded for a small bend radii and dynamic high flexing cycle applications, and cost-effective ribboned cable eliminates discrete wires.
With up to 14 Gbps performance, these high-speed cables have mix-and-match end options for application specific requirements with extensive custom capabilities.
-
Single-ended 50 Ω and differential 100 Ω standards
-
26 - 38 AWG coax and twinax construction
-
Rugged features and options including strain relief, plastic housings, screw downs, latches, locks, etc.
Contact HDR@samtec.com for custom assemblies.

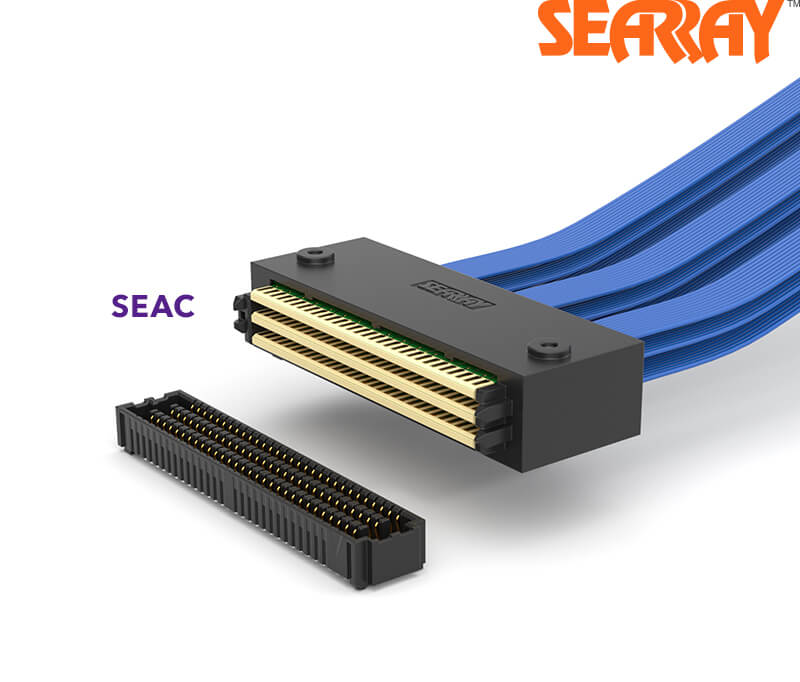

SEARAY™SEARAY™ High-Speed Cable Assemblies
These high-speed, high-density array cable assemblies feature micro coax cable and rugged Edge Rate® contacts.
Features
- Performance to 14 Gbps
- Edge Rate® contacts reduce broadside coupling
- Positive latching system
- Terminal end options
- Designed for rugged micro pitch applications
- 36 AWG coax high-speed cable
- 50 ohm single-ended signal routing

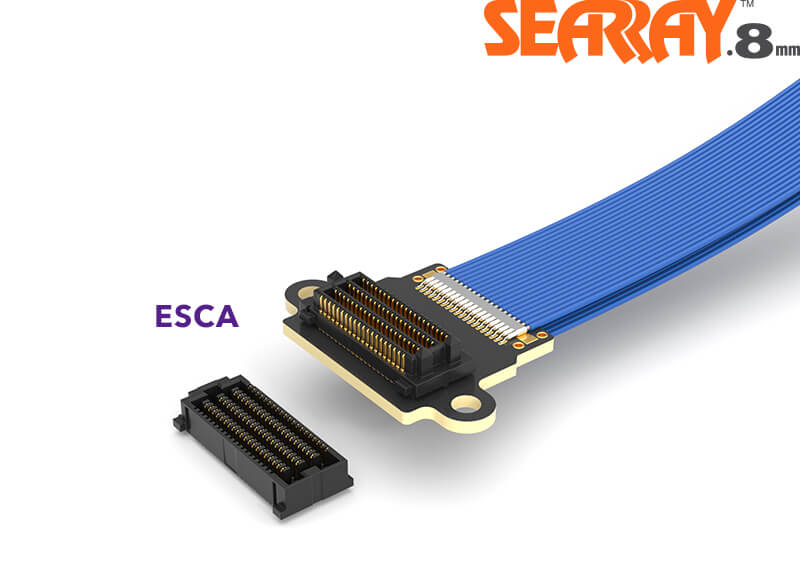

SEARAY™ 0.80 mmSEARAY™ 0.80 mm Pitch Ultra High-Density Array Cable Assemblies
These ultra high-density, high-speed array cable assemblies feature micro coax cable and rugged Edge Rate® contacts.
Features
- Performance to 14 Gbps
- 50% board space savings versus .050" (1.27 mm) pitch arrays
- Edge Rate® contacts reduce broadside coupling
- 50 ohm single-ended signal routing
- Supports PCIe® 3.0 and SAS3 protocols
- Designed for rugged micro pitch applications
- 34 AWG micro ribbon coax cable
- Up to 300 I/Os
- 8 and 10 row designs

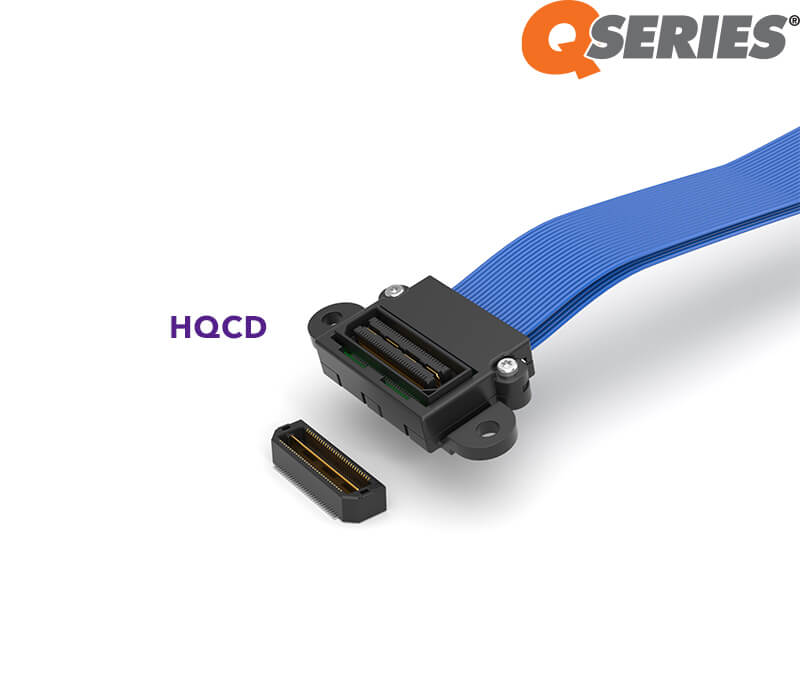

Q Series®Q Series® High-Speed Cable Assemblies
These high-speed cable assemblies feature an integral ground/power plane, micro coax and micro twinax cable.
Features
- Performance to 14 Gbps
- Surface mount, edge mount or panel mount terminations
- 50 ohm single-ended and 100 ohm differential pair signal routing
- Rugged screw mounts or retention pin options

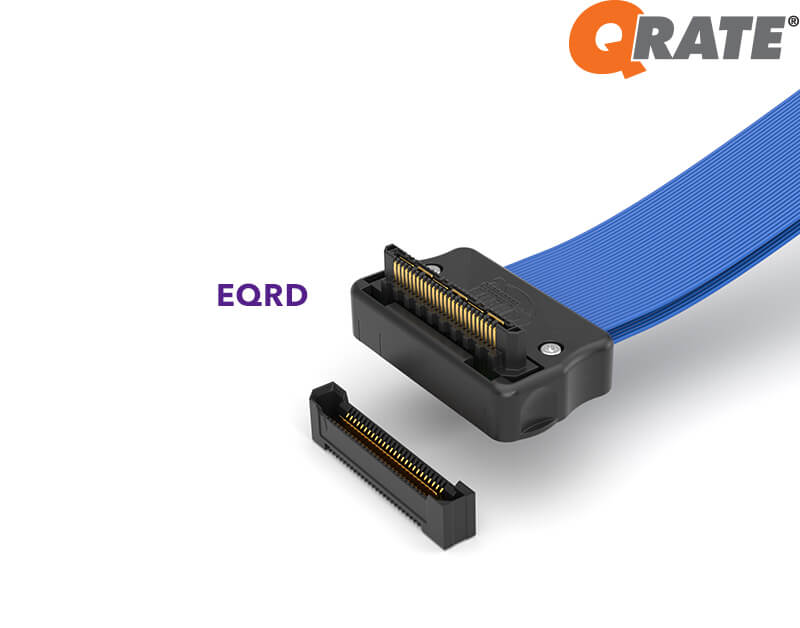

Q Rate®Q Rate® High-Speed Cable Assemblies
These high-speed cable assemblies feature a ground plane, micro coax or twinax cable and rugged Edge Rate® contacts.
Features
- Performance to 14 Gbps
- 50 ohm single-ended and 100 ohm differential pair signal routing
- Edge Rate® contacts reduce broadside coupling
- Slim body design
- 32 AWG twinax and 34 AWG coax high-speed cable

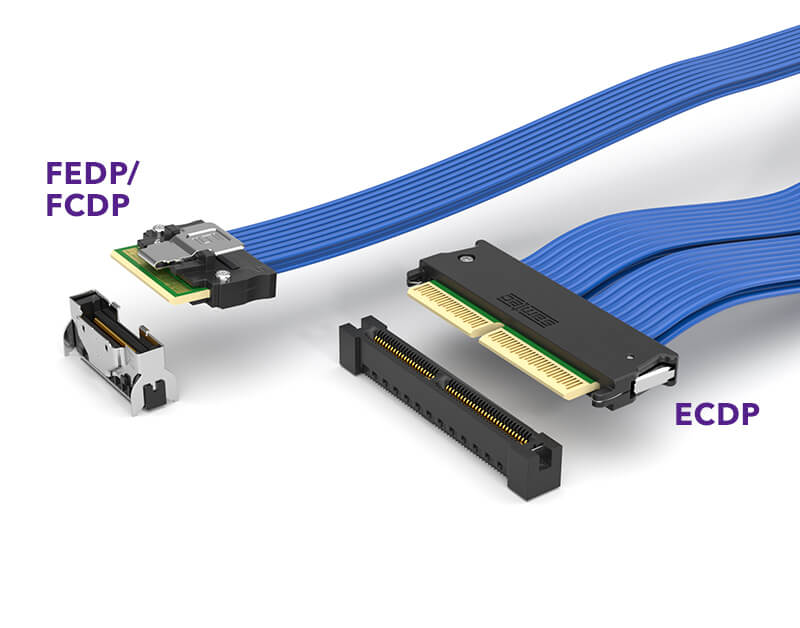

Edge Card Cable SystemsEdge Card Twinax High-Speed Cable Assemblies
These high-speed cable assemblies feature Eye Speed® twinax cable for optimized performance.
Features
- Performance to 16 Gbps
- 100 ohm differential pair signal routing
- Micro 0.50 mm and 0.80 mm pitch
- .062" (1.60 mm) thick card
- Rugged metal latching and shielding
- Vertical and right-angle PCB connectors

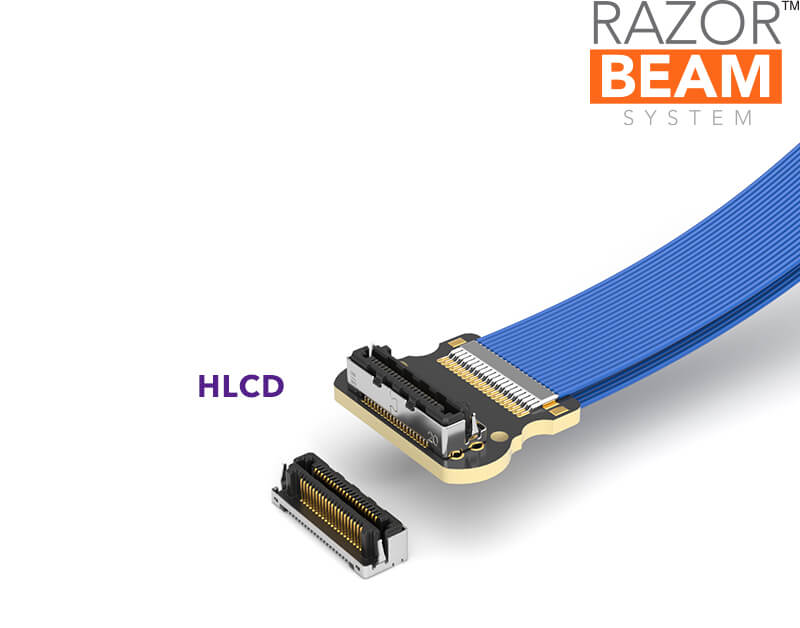

Razor Beam™Razor Beam™ High-Speed Cable Assemblies
These micro rugged, high-speed cable assemblies feature Eye Speed® micro coax cable.
Features
- 50 ohm single-ended signal routing
- 38 AWG micro ribbon coax cable
- Rugged screw down option
- Vertical or right-angle end options
- 0.50 mm (.0197") pitch

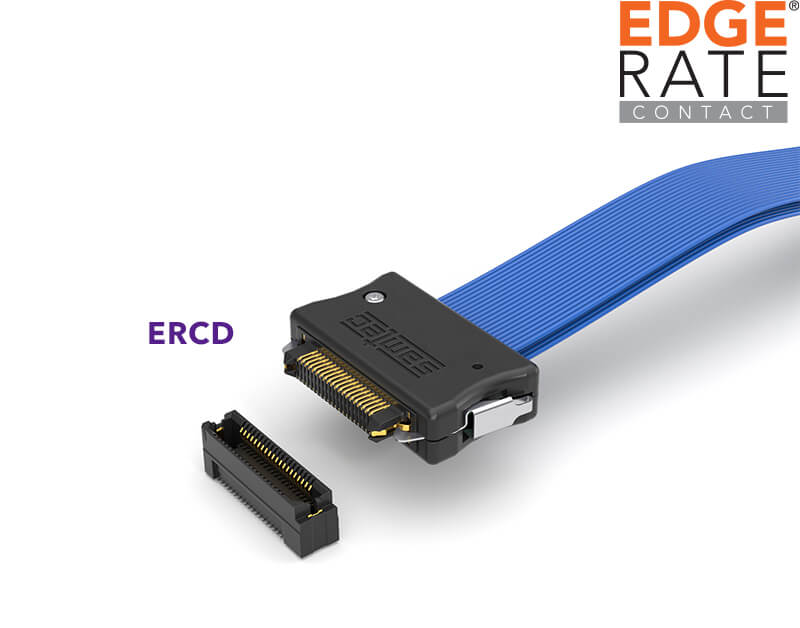

Edge Rate®Edge Rate® High-Speed Cable Assemblies
These high-speed cable assemblies feature rugged Edge Rate® contacts and Eye Speed® micro coax or twinax cable.
Features
- Performance to 14 Gbps
- 50 ohm single-ended and 100 ohm differential pair signal routing
- Designed for rugged micro pitch applications
- Edge Rate® contacts reduce broadside coupling
- Latching system available
- Hot swappable

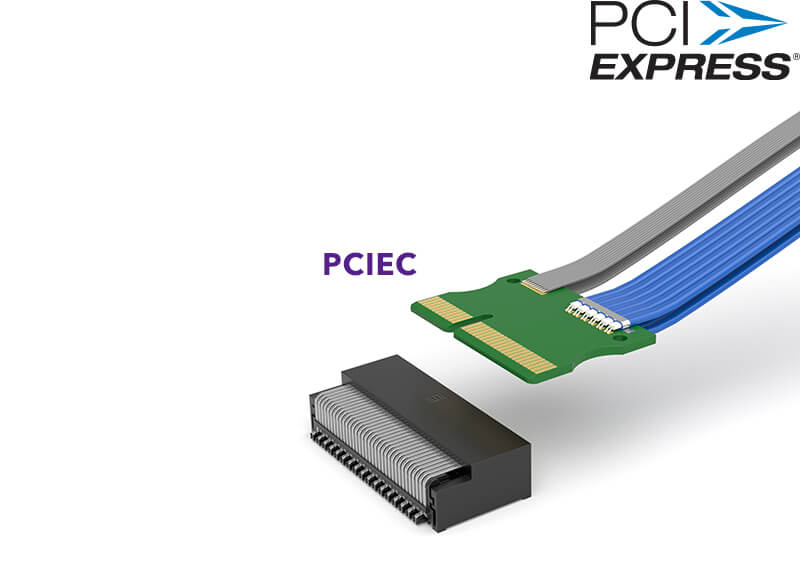

PCI Express®High-Speed PCI Express® PCIE Cables and Assemblies
High-speed PCI Express®, PCIE Cables and Assemblies. These jumper cables support one, four, eight and sixteen PCI Express® links.
Features
- Performance to 14 Gbps
- Supports 1, 4, 8 and 16 PCI Express® links
- Standard positions of 36, 64, 98 and 164
- 30 AWG standard ribbon cable and shielded twinax cable
