Rugged I/O Systems
IP67 & IP68 • BAYONET/PUSH-PULL CIRCULARS • SPACE-SAVING RECTANGULARS

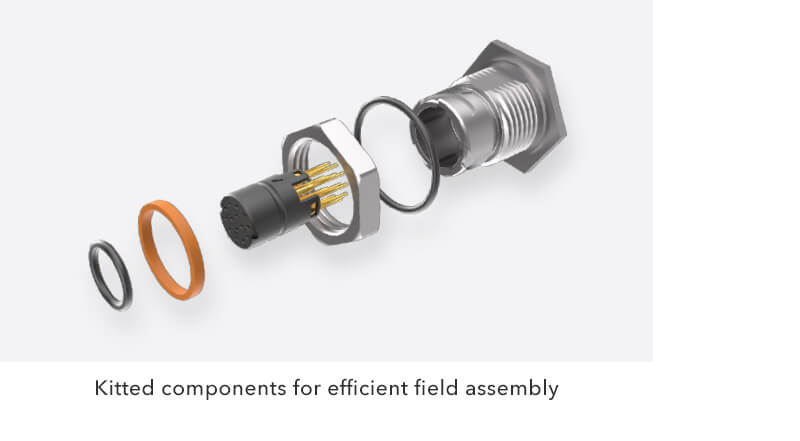

AccliMate™ sealed I/O systems meet IP67/IP68 requirements for dust and water proof sealing, ideal for high reliability in harsh environments. These sealed systems include bayonet circulars in 12 mm, 16 mm or 22 mm shell sizes with choice of pin configuration and gender, as well as kitted components for efficient field assembly. A cost-effective crimp version is also available for cable-to-panel applications. The miniature push-pull system is constructed of a lightweight plastic in a small form factor for increased panel density.
AccliMate™ sealed rectangulars offer a 25-45% panel area savings, making them ideal for low profile applications with USB and Ethernet signal options. Threaded sealed circulars are available with USB, or Ethernet that meets CAT3, CAT5 and CAT5e. Rugged dust caps are also available.

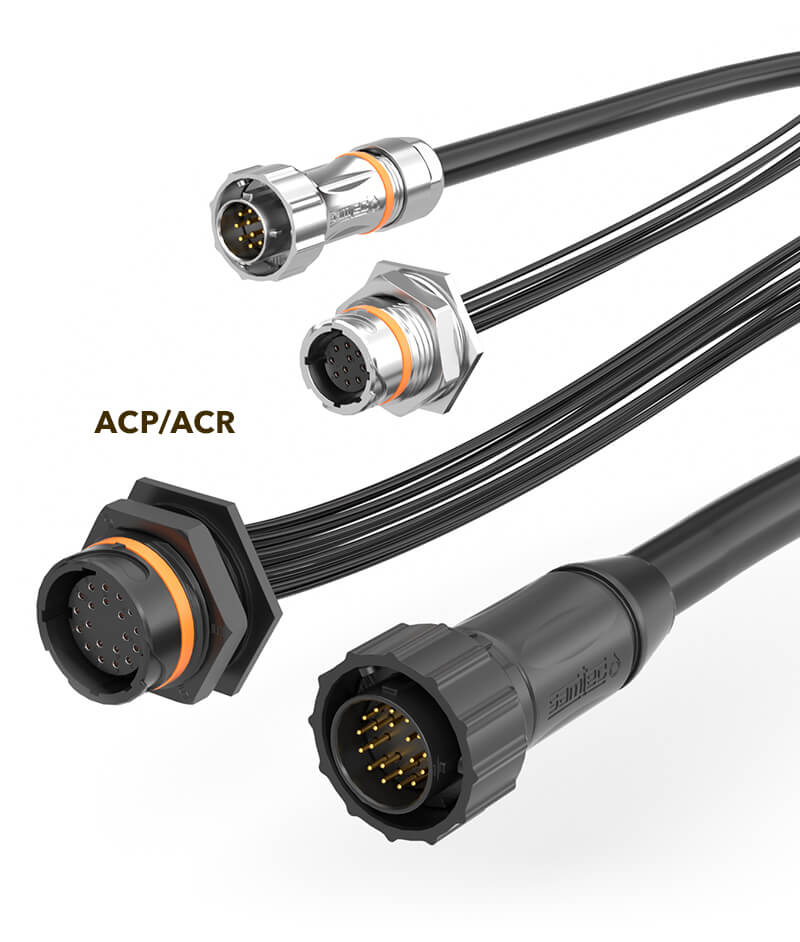

AccliMate™ Bayonet Sealed CircularsAccliMate™ Bayonet Sealed Circulars
Our AccliMate™ bayonet sealed circulars are tested to IP68 for dust and water applications.
Features
- Three standard shell sizes: 12 mm, 16 mm and 22 mm
- Metal, plastic or field termination housings
- Signal, power and combinations available
- Easily build a standard or customized assembly online

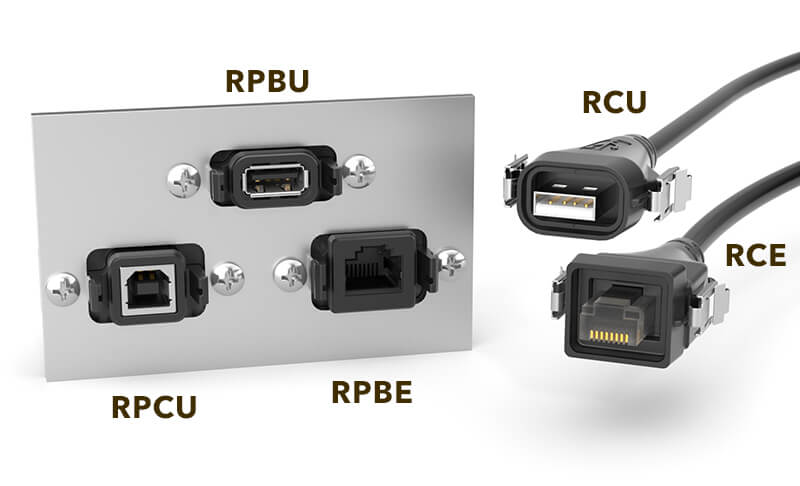

AccliMate™ Sealed RectangularsAccliMate™ IP67 and IP68 Sealed Panel Mount Connector
Our AccliMate™ IP67 and IP68 sealed panel mount connector features a spacing saving rectangular design, tested to IP68 for dust and water.
Features
- Space saving rectangular design
- Maximum density for low profile 1U sealed applications
- Ethernet and USB signal systems
- Easily build a standard or customized assembly online

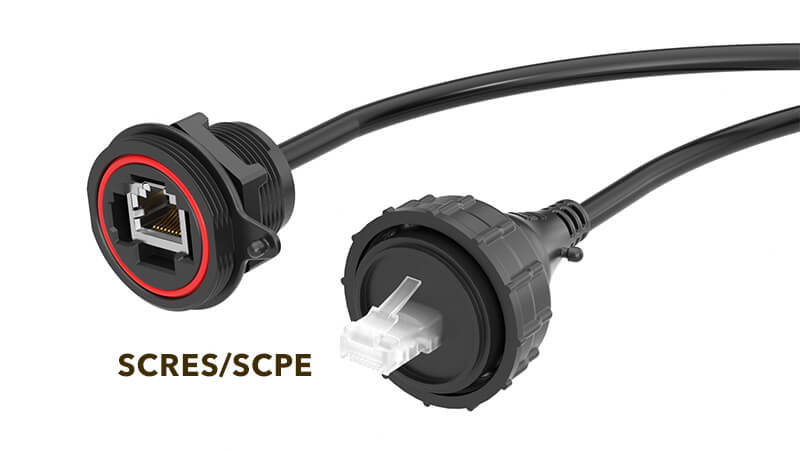

AccliMate™ Threaded CircularsAccliMate™ Threaded Circulars
Our AccliMate™ threaded circulars are tested to IP68 for dust and water applications.
Features
- Rugged overmold construction
- Available as Mini USB, USB, and Ethernet systems
- Ethernet version available for field termination
- Dust caps available

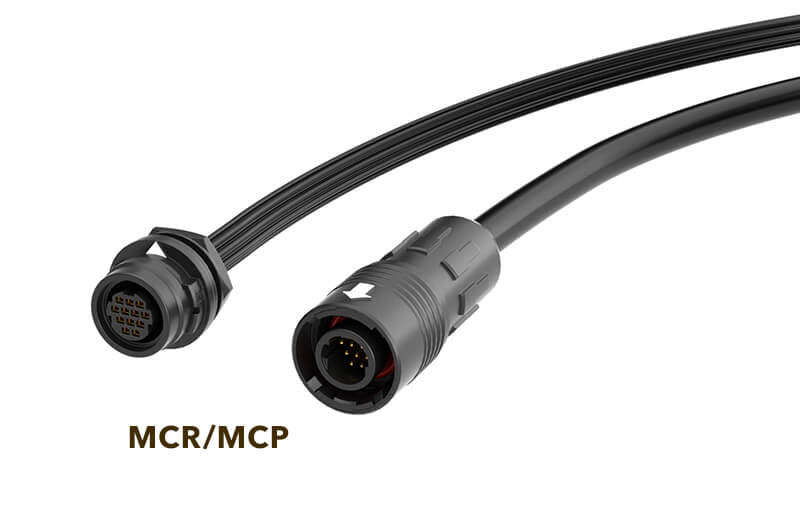

AccliMate™ Mini Push-PullAccliMate™ Mini Push-Pull Systems
Tested to IP67 for dust and water applications.
Features
- Lightweight plastic system
- Rugged push-pull latching
- Intermateable with Hirose HR30
- Polarizing keys
- Visual alignment indicators
- Cable-to-cable or cable-to-panel solutions
